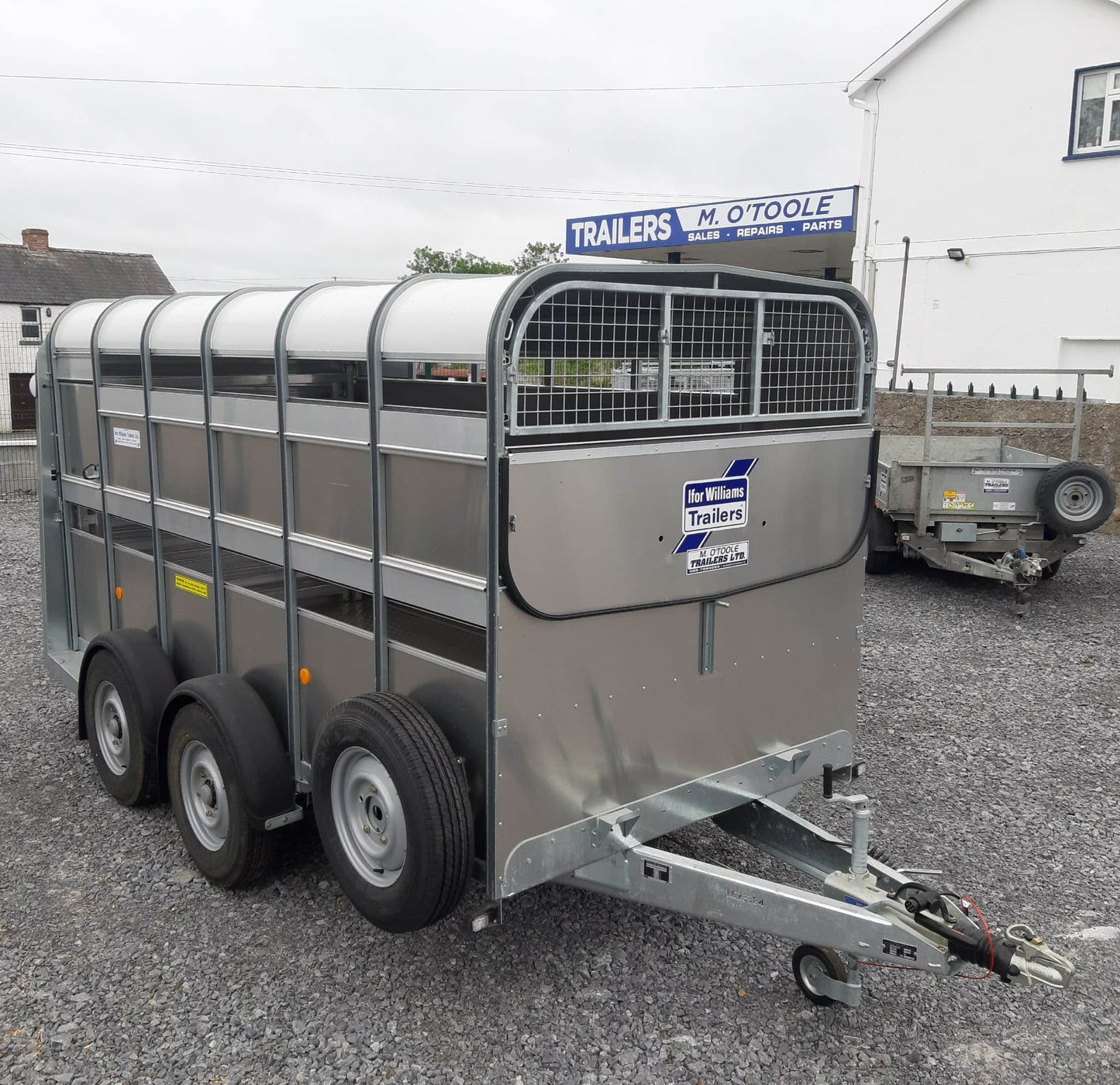

Ifor Williams TA510 10ft Trailer

Ifor Williams TA510 10ft Trailer

The TA510 series, boasting an internal width of 5'10", offers high-specification trailers ideal for those seeking maximum volume and gross weight capabilities. Available in body lengths of 10', 12', and 14', with height options of 6' and 7', the 14' model now features a 4' headroom option. The 7' versions, when equipped with an optional center partition, enable the transportation of two 16.2hh horses*. All trailers in this range have a maximum gross weight of 3500kg.

For added versatility, all sizes (excluding the 4' headroom variant) come with options for the standard ramp, combination ramp doors, or the Easyload™ ramp and folding deck system. Additionally, a cattle-only version, featuring permanently closed lower vents, is now available.

Key features of the TA510 trailers include a twin axle beam (with the option of a tri-axle for 12' and 14' models), leaf-sprung suspension, galvanized steel chassis, aluminum side panels, heat-reflecting roof, and a grip-faced aluminum planking-covered rear ramp. The 14' model with 4' headroom also includes aluminum ramp gates, pressure-treated timber planking with slip-resistant aluminum treadplate flooring, receiver brackets for optional cross divisions, side ventilation flaps, and a front access door.

Standard features across the TA510 range include a spare wheel and carrier, 50mm locking ball coupling, side vents and flaps, split front access door, rear ramp assistor, and a heavy-duty jockey wheel.
